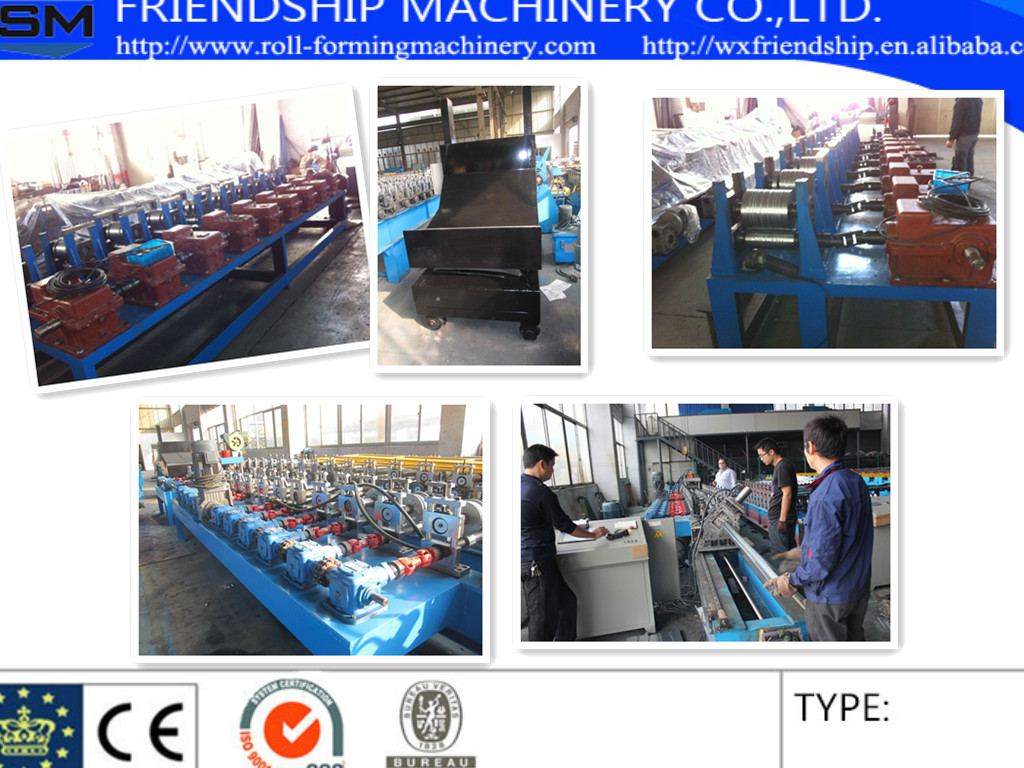

C-Z quick interchangeable machine adopts a special structure. The rollers for C & Z are changed very quickly without dismantle any parts. One machine can produce all specifications of C & Z purlins. Crimples are optional to increase rigidity of purlin. And the PLC can control adjust the any size in automatic.
Main technical data:
A: roll forming machine
2.1 Main dimension: 13000 x 2500 x 1800mm (L x W x H)
2.2 Total weight: 20000kg
2.3 Main motor: 15kW
2.4 Feeding, leveling motor power: 5.5KW
2.5 Hydraulic pressure: 15-20MPa
Hydraulic power: 5.5KW
2.6 Steps of rollers:
Feeding & guiding: two sets
Leveling: one set, seven rollers
Main forming: 15 steps
Rectifying: one step
2.7 Forming speed: 100m/min (not include the punching and cutting time)
2.8 adjust the size: control by PLC system
2.9 Purlin specifications:
| C purlin | with: 80-350mm height: 40-120mm, small rib: 14-25mm |
| Z purlin | with 80-350mm height: 40-120mm, small rib: 14-25mm |
| Forming speed | 100m/min |
2.10 Suitable material: 1.6-3.2mm, Q195~235, G550 cold rolled steel, hot-zinc coil.
2.11 Material of rollers: GCr15, 9CrSi, quenched
2.12 Material of rib roller: GCr15, 40Cr, quenched
We, Wuxi Friendship Machinery Co., Ltd, China leading expert in designing and manufacturing metal sheet roll forming machines, automatic welding and cutting system. We achieve this by the most skilled, dedicated and diverse group of people in our industry.
Our key products: C/Z/U purline forming line, PU sandwich panel line, steel silo production line, Culvert Corrugated pipe production line, roof/wall/deck/ forming machine and so on; H beam welding line, welding rotators and manipulator, positioner and so on.
We insist on providing quality products and service at affordable price for our clients. The performance record of our products is the backbone of Friendship Machinery's reputation. The proven ability of every set machine is why customers have returned to us repeatedly for new applications, designs and machinery as their products change and expand. We are proud of it
Our machines are well sold in South East and south Asia, Middle East, Africa, South America and East Europe, more than thirty countries.
Warmly welcome to visit our factory and we are looking forward to cooperating with you for splendid future.
